Harwin

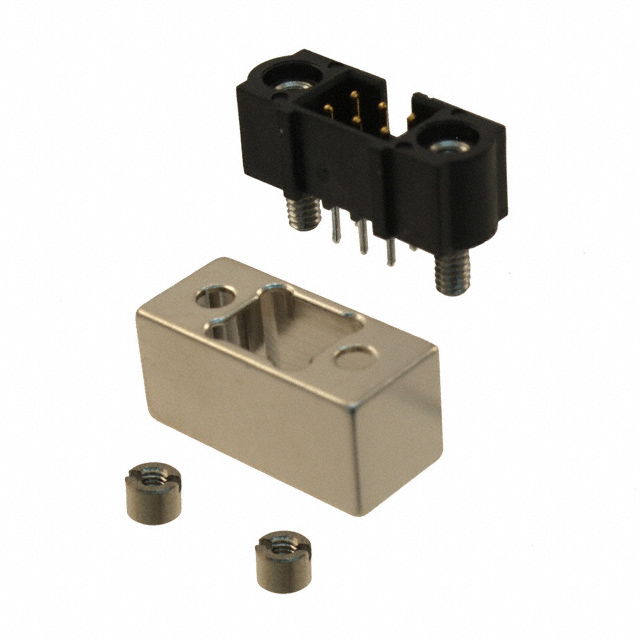

| Part Number | M80-5T10605B1 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 2MM VERT SHLD 6POS AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5420 pcs | Data sheet | M80-5T10605B1.pdf |
| Voltage Rating | 120V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Datamate S-Tek | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 952-1582 |
| Operating Temperature | -55°C ~ 121°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 33.55mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.319" (8.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Backshell, Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole 6 position 0.079" (2.00mm) |
| Current Rating | 2.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.106" (2.69mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 29.5µin (0.75µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
