Harwin

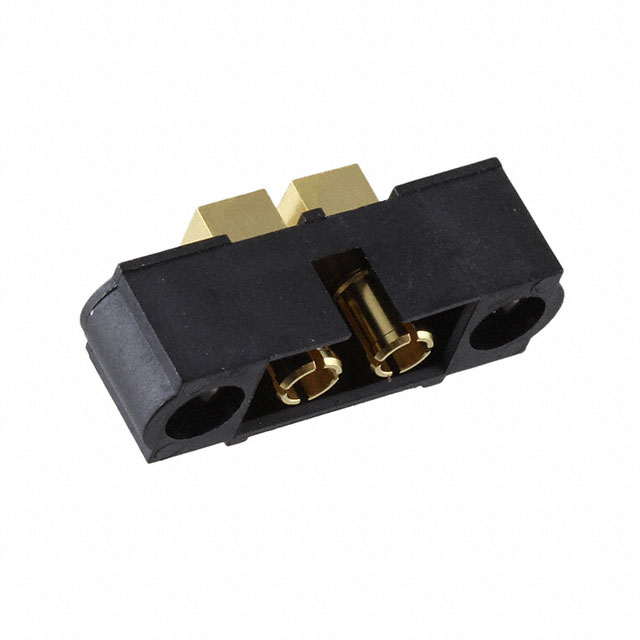

| Part Number | M80-5000000MC-02-333-00-000 | Manufacturer | Harwin |
|---|---|---|---|
| Description | MIX-TEK M HORIZ POWER 101 LOK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4652 pcs | Data sheet | M80-5000000MC-02-333-00-000.pdf |
| Voltage Rating | 800V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Datamate Mix-Tek | Row Spacing - Mating | - |
| Pitch - Mating | 0.157" (4.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 952-3549 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mating Flange |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.157" (4.00mm) |
| Current Rating | 20A | Contact Type | Male Pin, Power |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
