Harwin

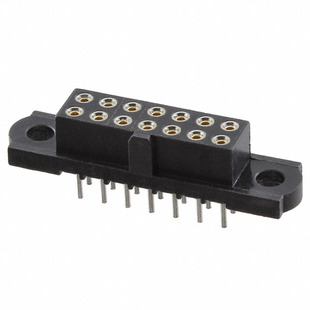

| Part Number | M80-4101442 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2 X 7 POS FEMALE PC TAIL (3MM) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13347 pcs | Data sheet | 1.M80-4101442.pdf2.M80-4101442.pdf3.M80-4101442.pdf |
| Voltage Rating | 120V | Termination | Solder |
| Style | Board to Board or Cable | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 952-3374 M80-4101442-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 14 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.3mm, 7.55mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.205" (5.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mating Flange, Polarizing Key | Fastening Type | - |
| Detailed Description | 14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 137.8µin (3.50µm) | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Military |
