Harwin

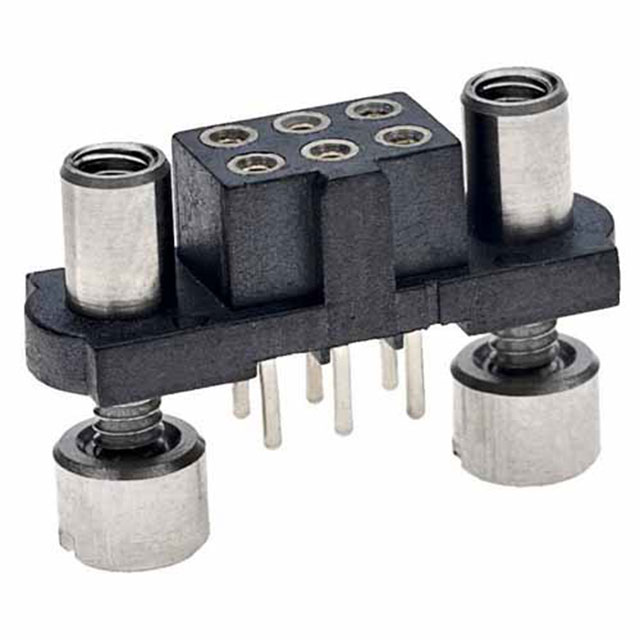

| Part Number | M80-4050442 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 02+02 DIL FEM 3MM PCT REV/F JS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6705 pcs | Data sheet | 1.M80-4050442.pdf2.M80-4050442.pdf3.M80-4050442.pdf |
| Voltage Rating | 800V | Termination | Solder |
| Style | Board to Board or Cable | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 952-3535 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.3mm, 7.55mm | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.204" (5.17mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Jackscrews, Mating Flange, Mounting Flange, Polarizing Key |
| Fastening Type | Screw Lock | Detailed Description | 4 Position Receptacle Connector Through Hole |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 137.8µin (3.50µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Military |
