M701-340542

HarwinHarwin

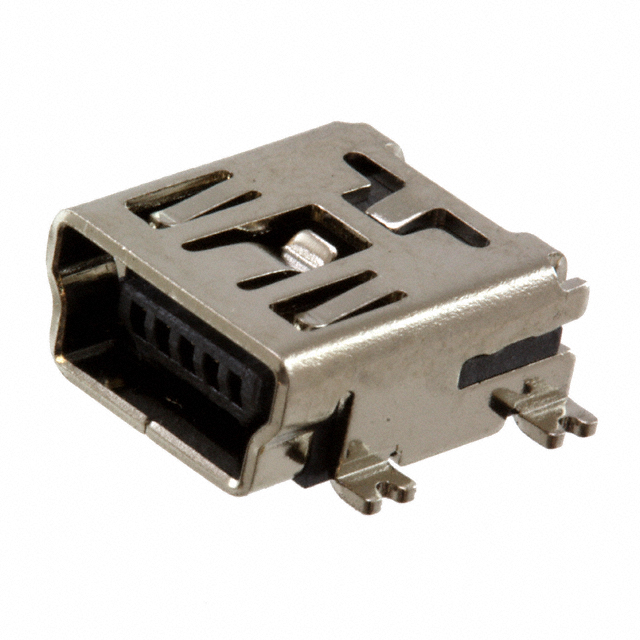

M701-340542 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: M701-340542
Manufacturer/Brand: Harwin
Product description MINI 00B SINGLE SMT HORIZ CONN
Datasheets: M701-340542.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 75643 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 75643 pcs
Reference Price (In US Dollars)
1 pcs
$0.408
10 pcs
$0.359
25 pcs
$0.338
50 pcs
$0.324
100 pcs
$0.31
250 pcs
$0.282
500 pcs
$0.254
1000 pcs
$0.225
2500 pcs
$0.204
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.408

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of M701-340542

Part Number M701-340542 Manufacturer Harwin
Description MINI 00B SINGLE SMT HORIZ CONN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 75643 pcs Data sheet M701-340542.pdf
Voltage - Rated - Termination Solder
Specifications USB 2.0 Shielding Unshielded
Shell/Shielding Material Brass Series -
Packaging Bulk Other Names 952-2197
M701340542
Operating Temperature -55°C ~ 105°C Number of Ports 1
Number of Contacts 5 Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles - Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 7 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Color Black Ingress Protection -
Gender Receptacle Features Board Guide, Solder Retention
Detailed Description USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle Current Rating 1A
Contact Finish Gold Connector Type USB - mini B
