Harwin

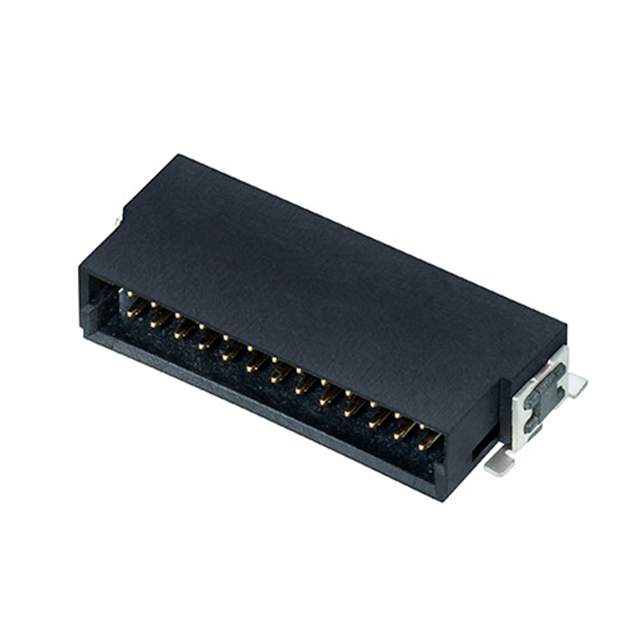

| Part Number | M55-7102642R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM SMD R/A 26POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 116457 pcs | Data sheet | 1.M55-7102642R.pdf2.M55-7102642R.pdf3.M55-7102642R.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | Archer Kontrol | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 952-3894-2 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 26 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 26 position 0.050" (1.27mm) | Current Rating | 1.2A |
| Contact Type | Male Pin | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial |
