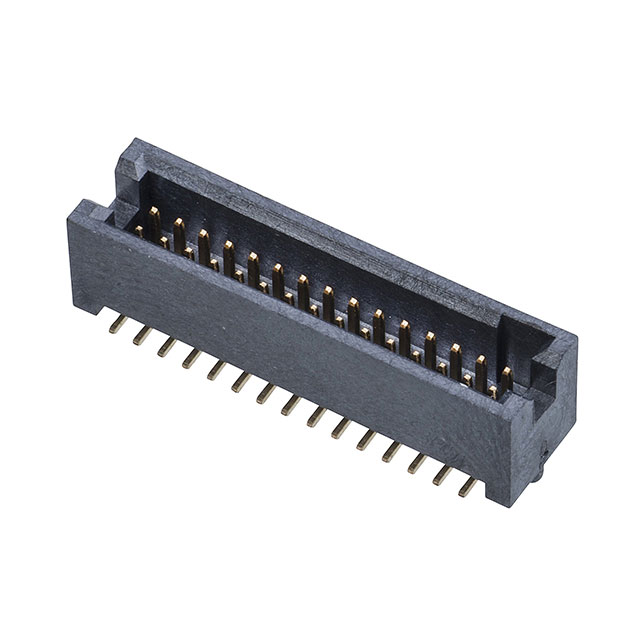

Harwin
| Part Number | M50-4911545 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM DUAL SMD 30POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21907 pcs | Data sheet | 1.M50-4911545.pdf2.M50-4911545.pdf3.M50-4911545.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | Archer M50 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 952-3151 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 6.5mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.224" (5.69mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 30 position 0.050" (1.27mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
