Harwin

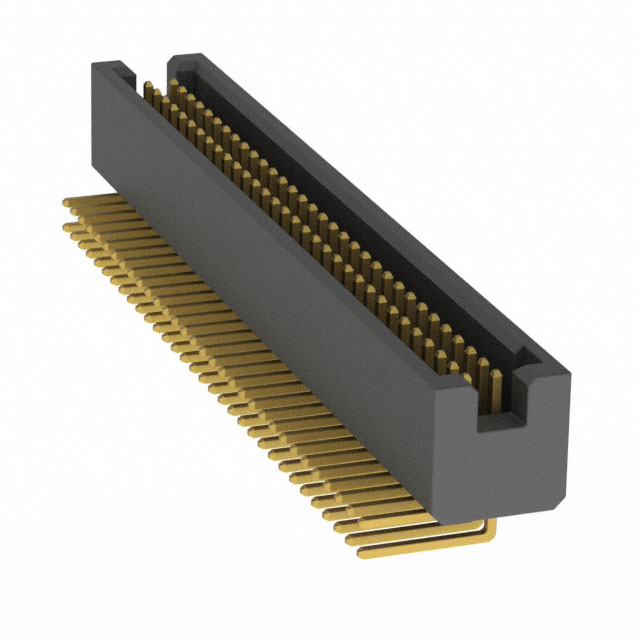

| Part Number | M50-4803245 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM R/A AU 64POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3463 pcs | Data sheet | 1.M50-4803245.pdf2.M50-4803245.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | Archer M50 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Overall Contact Length | - | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 64 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.222" (5.65mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 64 position 0.050" (1.27mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.083" (2.11mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
