Harwin

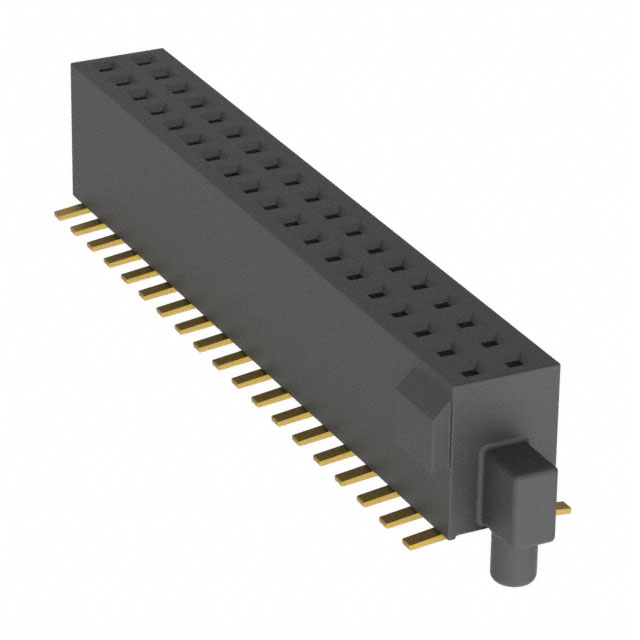

| Part Number | M50-4301945 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 1.27MM SMD AU 38POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33221 pcs | Data sheet | 1.M50-4301945.pdf2.M50-4301945.pdf3.M50-4301945.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Archer M50 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 38 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.5mm, 6.9mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.181" (4.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 38 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Medical, Telecommunications |
