Harwin
| Part Number | M50-3140445R | Manufacturer | Harwin |
|---|---|---|---|

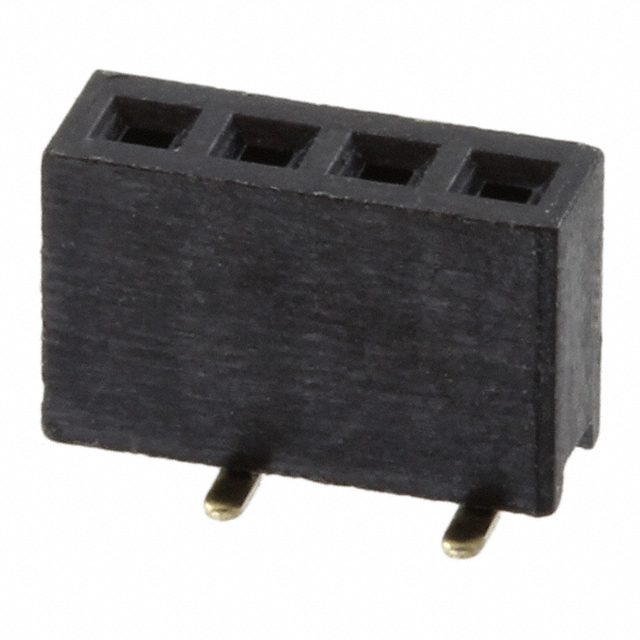

| Description | CONN RCPT 1.27MM SMT AU 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 218303 pcs | Data sheet | 1.M50-3140445R.pdf2.M50-3140445R.pdf3.M50-3140445R.pdf |
| Voltage Rating | 500VAC | Termination | Solder |
| Style | Board to Board | Series | Archer M50 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Other Names | 952-3927-2 M50-3140445R-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.134" (3.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Medical, Telecommunications |
