Harwin

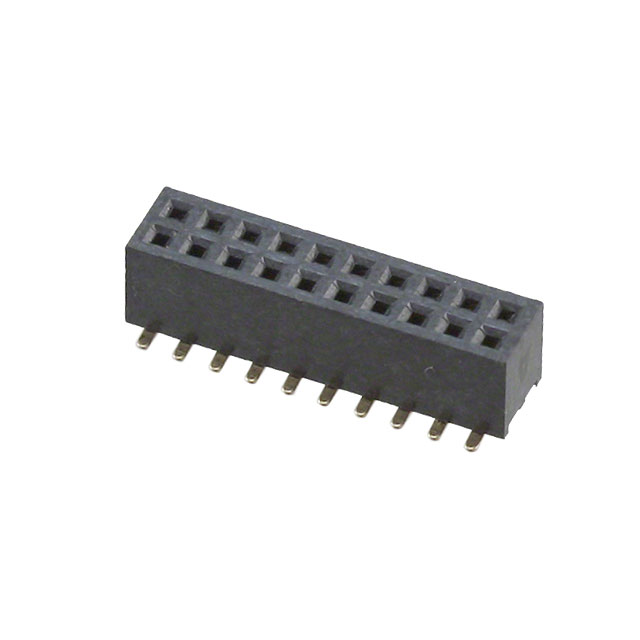

| Part Number | M50-3121045 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 1.27MM SMT AU 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27227 pcs | Data sheet | 1.M50-3121045.pdf2.M50-3121045.pdf3.M50-3121045.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | Archer M50 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | 952-1711 M503121045 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.142" (3.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Medical, Telecommunications |
