M40-6201546

Harwin

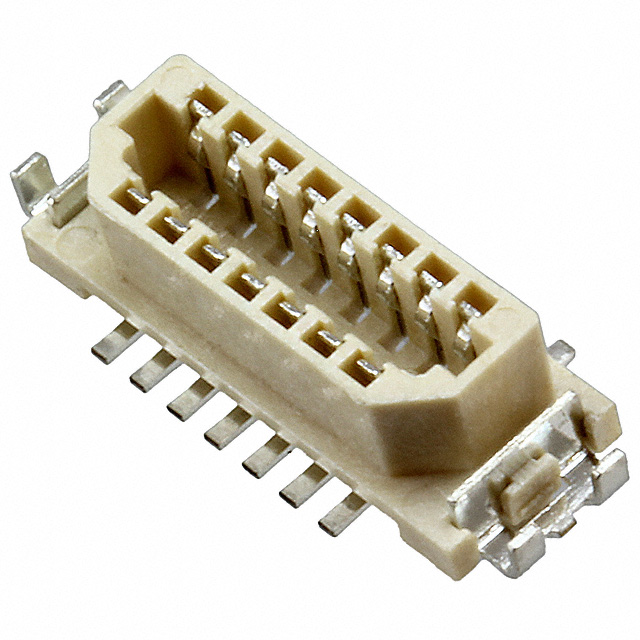

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M40-6201546
Manufacturer/Brand:	Harwin
Product description	CONN RCPT 15POS TIN 1MM SMD
Datasheets:	1.M40-6201546.pdf 2.M40-6201546.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41311 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41311 pcs

Reference Price (In US Dollars)

1 pcs: $0.957

10 pcs: $0.868

44 pcs: $0.815

88 pcs: $0.78

132 pcs: $0.744

264 pcs: $0.673

528 pcs: $0.62

1012 pcs: $0.532

2508 pcs: $0.496

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.957

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M40-6201546

Part Number	M40-6201546	Manufacturer	Harwin
Description	CONN RCPT 15POS TIN 1MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41311 pcs	Data sheet	1.M40-6201546.pdf 2.M40-6201546.pdf
Series	M40	Pitch	0.039" (1.00mm)
Packaging	Tube	Other Names	952-1858 M406201546
Number of Rows	2	Number of Positions	15
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	4.3mm	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.130" (3.30mm)
Features	Board Guide, Solder Retention	Detailed Description	15 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin
Contact Finish Thickness	80.0µin (2.03µm)	Contact Finish	Tin
Connector Type	Receptacle, Outer Shroud Contacts
