Harwin

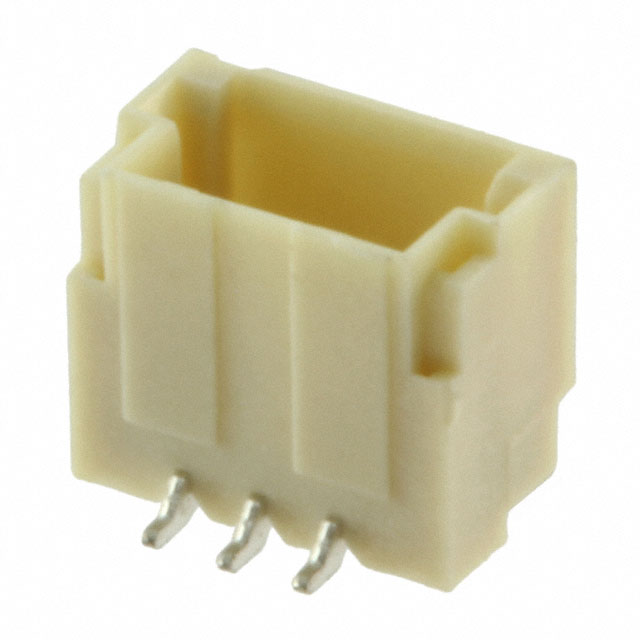

| Part Number | M40-3010346 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1.00MM PITCH SIL SMT VERTICAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132522 pcs | Data sheet | M40-3010346.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | M40 | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 952-3041 M40-3010346-ND |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.169" (4.30mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Pick and Place, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 3 position 0.039" (1.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
