Harwin

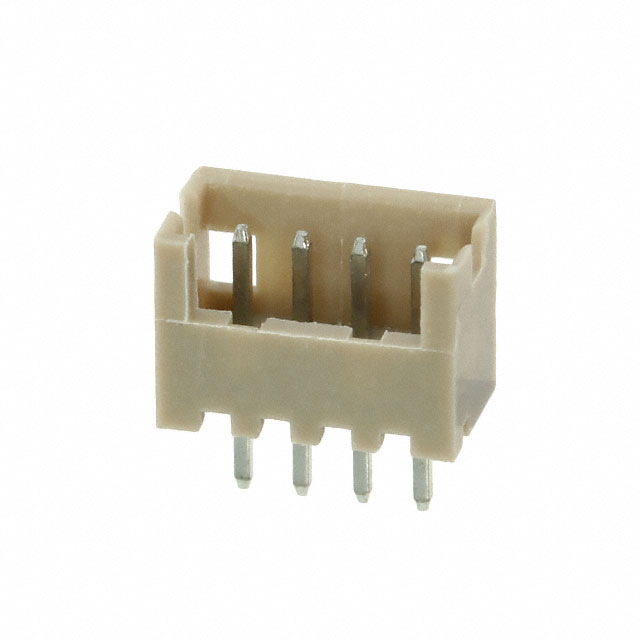

| Part Number | M30-6100446 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 4 SIL PC TAIL PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83612 pcs | Data sheet | 1.M30-6100446.pdf2.M30-6100446.pdf3.M30-6100446.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | M30 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 952-2558 M30-6100446-ND |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.4mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.169" (4.30mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 4 position 0.049" (1.25mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.091" (2.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
