Harwin

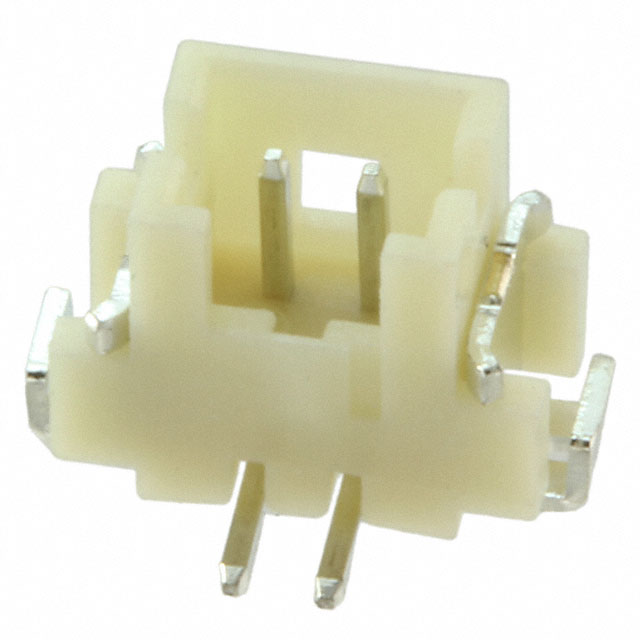

| Part Number | M30-6000246 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2 SIL SMT PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38630 pcs | Data sheet | 1.M30-6000246.pdf2.M30-6000246.pdf3.M30-6000246.pdf |
| Voltage Rating | 150V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | M30 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 952-3031 M30-6000246-ND |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.9mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.189" (4.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 2 position 0.049" (1.25mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
