Harwin

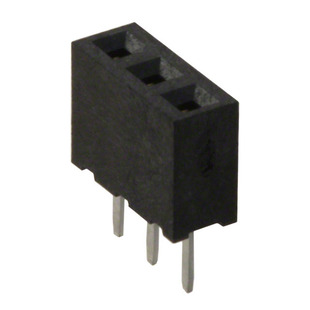

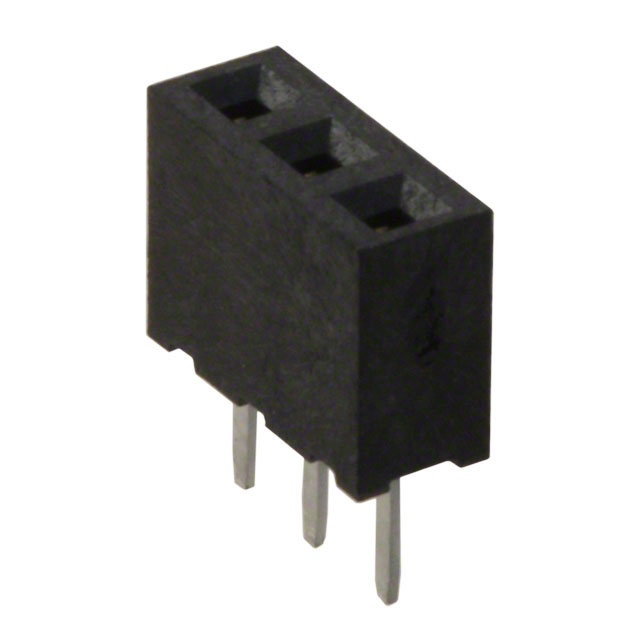

| Part Number | M22-7130342 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RECEPT 2MM VERT AU 3POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100702 pcs | Data sheet | 1.M22-7130342.pdf2.M22-7130342.pdf |
| Voltage Rating | 500VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | M22 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 952-1350-5 M227130342 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.9mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.173" (4.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 3 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Telecommunications |
