Harwin

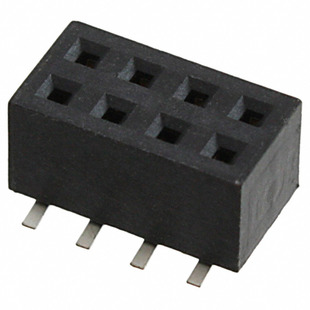

| Part Number | M22-6340442 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RECEPT 2MM SMD AU 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88397 pcs | Data sheet | 1.M22-6340442.pdf2.M22-6340442.pdf |
| Voltage Rating | 500VAC | Termination | Solder |
| Style | Board to Board | Series | M22 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 952-1346-5 M226340442 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.169" (4.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | General Purpose, Industrial, Telecommunications |
