Harwin

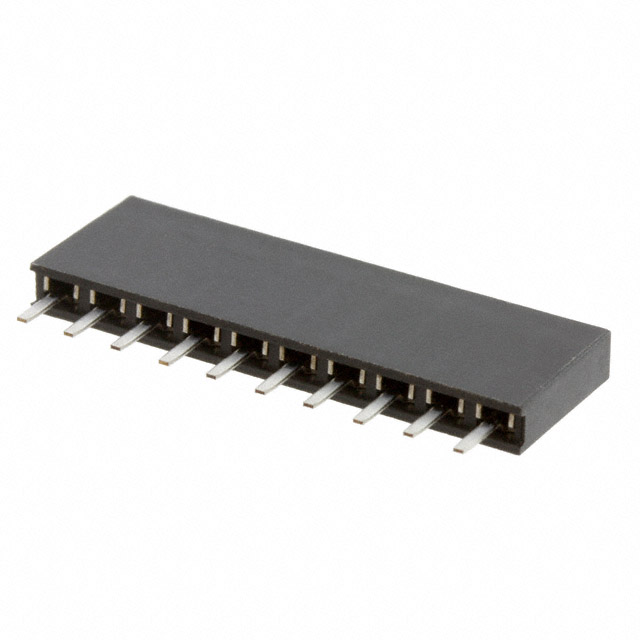

| Part Number | M20-7821042 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 10-WAY SIL VERT SOCKET L/FREE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66632 pcs | Data sheet | 1.M20-7821042.pdf2.M20-7821042.pdf3.M20-7821042.pdf |
| Voltage Rating | 1000V | Termination | Solder |
| Style | Board to Board or Cable | Series | M20 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 952-1846 M207821042 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.04mm, 12.63mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Telecommunications |
