H3492-01

Harwin

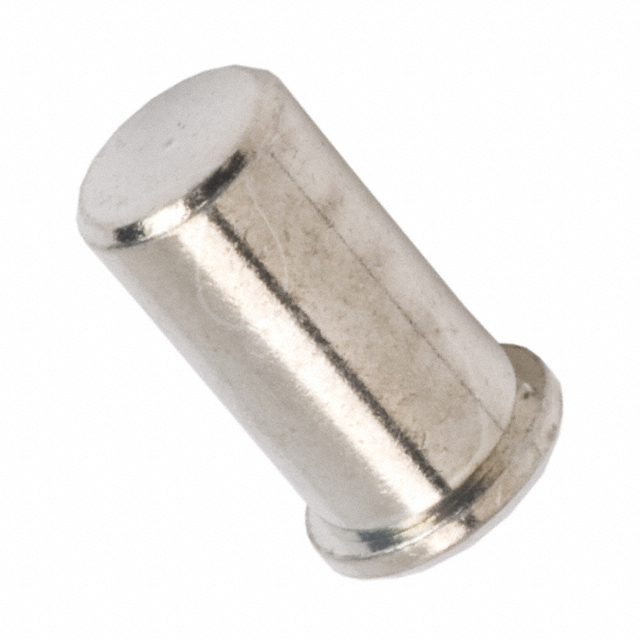

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H3492-01
Manufacturer/Brand:	Harwin
Product description	CONN PIN RCPT .079 SOLDER
Datasheets:	1.H3492-01.pdf 2.H3492-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	70250 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 70250 pcs

Reference Price (In US Dollars)

1 pcs: $0.43

10 pcs: $0.378

25 pcs: $0.355

50 pcs: $0.341

100 pcs: $0.326

250 pcs: $0.296

500 pcs: $0.267

1000 pcs: $0.237

2500 pcs: $0.215

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.43

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H3492-01

Part Number	H3492-01	Manufacturer	Harwin
Description	CONN PIN RCPT .079 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70250 pcs	Data sheet	1.H3492-01.pdf 2.H3492-01.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.161" (4.09mm)
Series	-	Pin Hole Diameter	-
Packaging	Bulk	Other Names	952-1473 H349201
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.158" ~ 0.162" (4.01mm ~ 4.12mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.315" (8.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	2.99N ~ 6.00N	Flange Diameter	0.187" (4.75mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.079" ~ 0.091" (2.00mm ~ 2.30mm) No Tail Solder
Contact Material	Beryllium Copper	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.079" ~ 0.091" (2.00mm ~ 2.30mm)
