H3161-05

Harwin

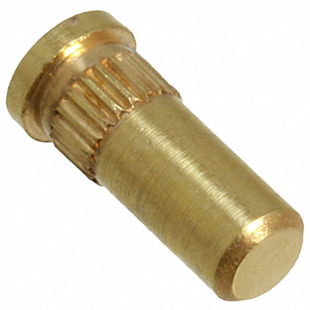

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H3161-05
Manufacturer/Brand:	Harwin
Product description	CONN PIN RCPT .035-.041 KNURL
Datasheets:	1.H3161-05.pdf 2.H3161-05.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	233320 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 233320 pcs

Reference Price (In US Dollars)

1 pcs: $0.144

10 pcs: $0.138

25 pcs: $0.118

50 pcs: $0.10

100 pcs: $0.096

250 pcs: $0.087

500 pcs: $0.083

1000 pcs: $0.069

2500 pcs: $0.063

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.144

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H3161-05

Part Number	H3161-05	Manufacturer	Harwin
Description	CONN PIN RCPT .035-.041 KNURL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	233320 pcs	Data sheet	1.H3161-05.pdf 2.H3161-05.pdf
Termination	Press-Fit, Knurled	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.140" (3.56mm)
Series	-	Pin Hole Diameter	-
Packaging	Bulk	Other Names	952-2204 H316105
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.075" ~ 0.077" (1.91mm ~ 1.96mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.207" (5.26mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	3.00N ~ 9.00N	Flange Diameter	0.092" (2.34mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit, Knurled
Contact Material	Beryllium Copper	Contact Finish Thickness	5.90µin (0.150µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.035" ~ 0.041" (0.89mm ~ 1.05mm)
