H2176-01

Harwin

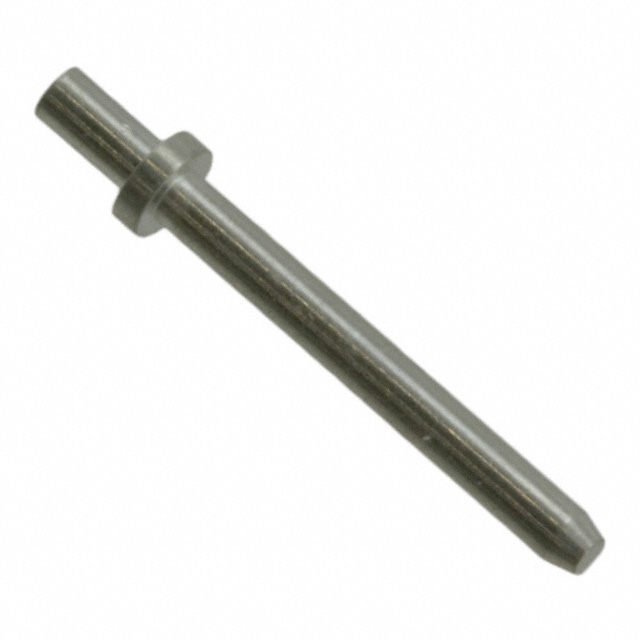

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H2176-01
Manufacturer/Brand:	Harwin
Product description	CONN PC PIN CIRC 0.041DIA TIN
Datasheets:	1.H2176-01.pdf 2.H2176-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	445600 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 445600 pcs

Reference Price (In US Dollars)

1 pcs: $0.087

10 pcs: $0.083

25 pcs: $0.071

50 pcs: $0.062

100 pcs: $0.057

250 pcs: $0.051

500 pcs: $0.048

1000 pcs: $0.04

2500 pcs: $0.036

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.087

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H2176-01

Part Number	H2176-01	Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.041DIA TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	445600 pcs	Data sheet	1.H2176-01.pdf 2.H2176-01.pdf
Termination	Swage	Terminal Type	PC Pin
Terminal Style	Single End	Series	-
Pin Size - Below Flange	-	Pin Size - Above Flange	0.041" (1.04mm) Dia
Packaging	Bulk	Other Names	952-1446 H217601
Mounting Type	Through Hole	Mounting Hole Diameter	0.041" ~ 0.045" (1.04mm ~ 1.14mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.457" (11.61mm)
Length - Below Flange	0.082" (2.08mm)	Length - Above Flange	0.355" (9.02mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.070" (1.77mm)
Detailed Description	PC Pin Terminal Connector Through Hole Tin 0.041" (1.04mm) Dia	Contact Material	Brass
Contact Finish Thickness	-	Contact Finish	Tin
Board Thickness	0.063" (1.60mm)
