H2121-01

Harwin

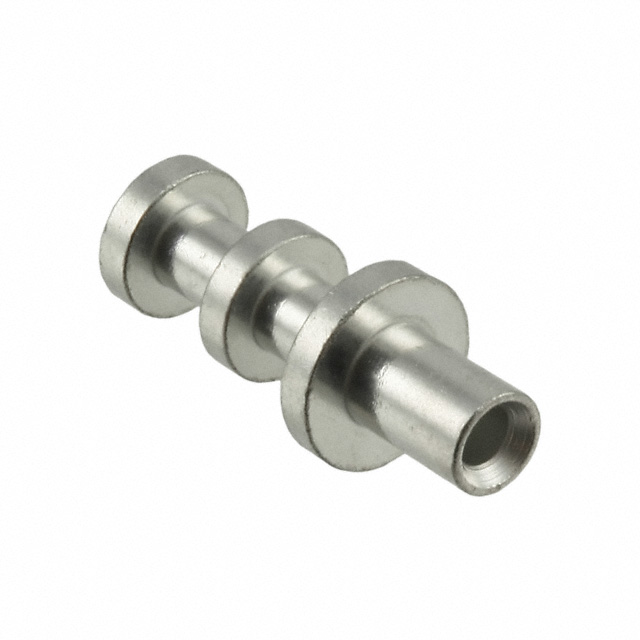

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H2121-01
Manufacturer/Brand:	Harwin
Product description	TERM TURRET SINGLE L=5.15MM TIN
Datasheets:	1.H2121-01.pdf 2.H2121-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	252954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 252954 pcs

Reference Price (In US Dollars)

1 pcs: $0.134

10 pcs: $0.128

25 pcs: $0.11

50 pcs: $0.093

100 pcs: $0.089

250 pcs: $0.08

500 pcs: $0.077

1000 pcs: $0.064

2500 pcs: $0.058

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.134

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H2121-01

Part Number	H2121-01	Manufacturer	Harwin
Description	TERM TURRET SINGLE L=5.15MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	252954 pcs	Data sheet	1.H2121-01.pdf 2.H2121-01.pdf
Termination	Swage	Terminal Type	Single End
Staking Side OD	0.039" (0.99mm)	Staking Side ID	-
Series	-	Other Names	952-1440 H212101
Number of Turrets	Double	Mounting Type	Through Hole
Mounting Hole Diameter	0.066" ~ 0.068" (1.68mm ~ 1.72mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.297" (7.54mm)	Length - Below Flange	0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Above Board	0.203" (5.15mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.125" (3.18mm)	Diameter - Turret Head	0.094" (2.39mm)
Detailed Description	Terminal Turret Connector Single End 0.203" (5.15mm) Tin	Contact Material	Brass Alloy
Contact Finish Thickness	-	Contact Finish	Tin
Board Thickness	0.063" (1.60mm)
