Harwin

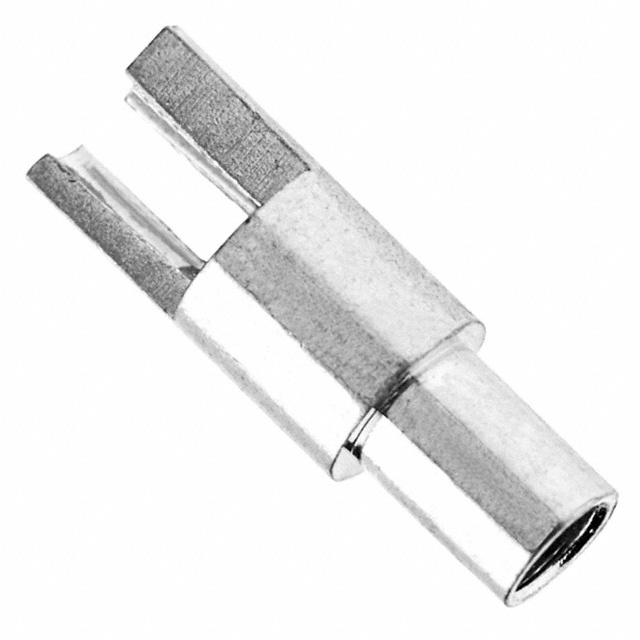

| Part Number | H2055-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=6.35MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 258455 pcs | Data sheet | 1.H2055-01.pdf2.H2055-01.pdf |
| Termination | Swage | Terminal Type | Single End, Fork, Hollow |
| Staking Side OD | 0.091" ~ 0.094" (2.31mm ~ 2.39mm) | Staking Side ID | 0.067" ~ 0.070" (1.70mm ~ 1.78mm) |
| Series | - | Other Names | 952-1426 H205501 |
| Number of Turrets | Single | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.094" ~ 0.097" (2.39mm ~ 2.46mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.375" (9.53mm) | Length - Below Flange | 0.125" ~ 0.130" (3.18mm ~ 3.30mm) |
| Length - Above Board | 0.250" (6.35mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.125" (3.18mm) | Diameter - Turret Head | - |
| Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.250" (6.35mm) Tin | Contact Material | Brass Alloy |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.094" (2.39mm) |
