Harwin

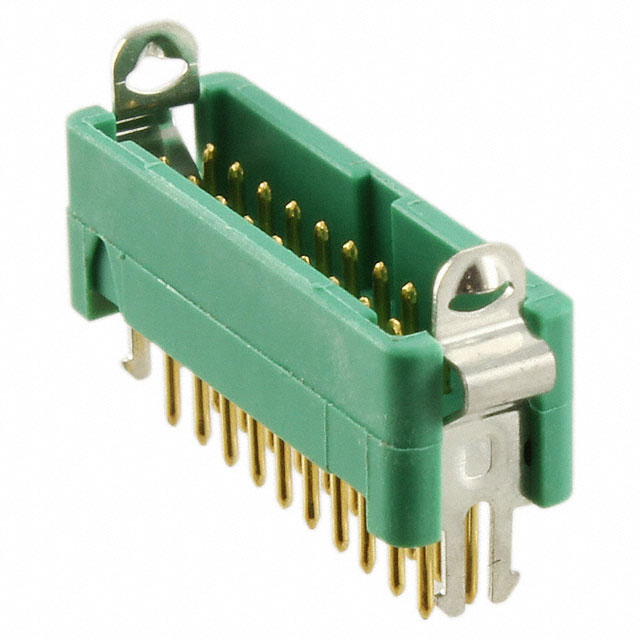

| Part Number | G125-MV12005L1R | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1.25MM M HSG 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20197 pcs | Data sheet | 1.G125-MV12005L1R.pdf2.G125-MV12005L1R.pdf3.G125-MV12005L1R.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Gecko | Row Spacing - Mating | 0.049" (1.25mm) |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Operating Temperature | -65°C ~ 150°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.25mm, 7.35mm, 7.7mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Insulation Height | 0.193" (4.90mm) | Insulation Color | Green |
| Ingress Protection | - | Features | Board Lock, Pick and Place |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 20 position 0.049" (1.25mm) |
| Current Rating | 2A per Contact | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
