Harwin
| Part Number | G125-FS11005L0P | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1.25MM F HSG 10POS SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8526 pcs | Data sheet | 1.G125-FS11005L0P.pdf2.G125-FS11005L0P.pdf3.G125-FS11005L0P.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | Gecko |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Strip | Other Names | 952-2618 G125-FS11005L0P-ND |
| Operating Temperature | -65°C ~ 150°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free | Insulation Height | 0.207" (5.25mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | Pick and Place, Polarizing Key | Fastening Type | Latch Holder |

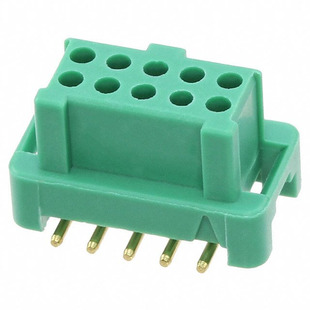

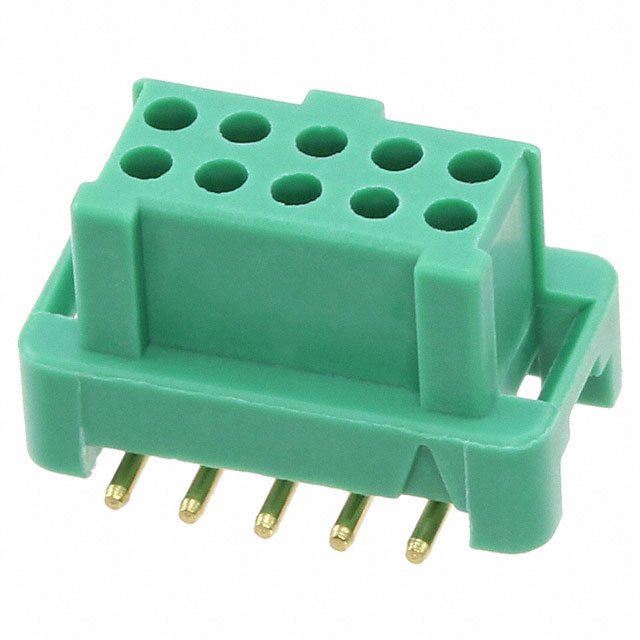

| Detailed Description | 10 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose |
