PWDP13026

Hammond Manufacturing

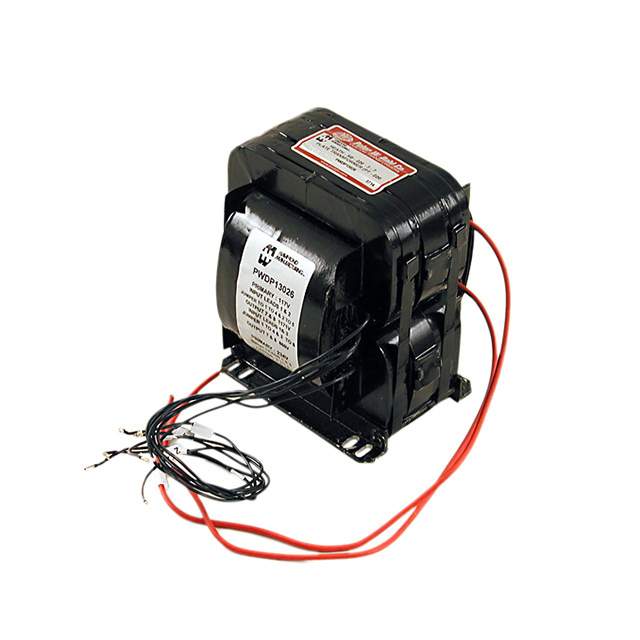

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PWDP13026
Manufacturer/Brand:	Hammond Manufacturing
Product description	HEATH SB-220 -3-7 PLATE TRNSFRMR
Datasheets:	PWDP13026.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	249 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 249 pcs

Reference Price (In US Dollars)

1 pcs: $142.639

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$142.639

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PWDP13026

Part Number	PWDP13026	Manufacturer	Hammond Manufacturing
Description	HEATH SB-220 -3-7 PLATE TRNSFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	249 pcs	Data sheet	PWDP13026.pdf
Weight	-	Voltage - Secondary (Full Load)	1171V, 860V
Voltage - Primary	120V, 240V	Voltage - Isolation	-
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	127.00mm L x 133.35mm W	Series	Peter W. Dahl Design
Secondary Winding(s)	Single	Primary Winding(s)	Dual, Multiple Taps
Power - Max	-	Other Names	Q8683236 Q9308310 Q9414741
Mounting Type	Chassis Mount	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	158.75mm
Current - Output (Max)	1.3A	Center Tap	No
