302AX

Hammond Manufacturing

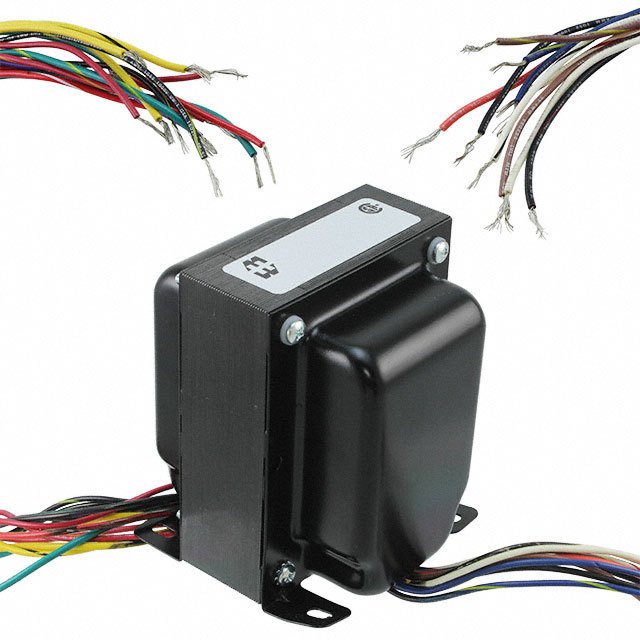

Image may be representation. See specifications for product details.

Product Overview

Part Number:	302AX
Manufacturer/Brand:	Hammond Manufacturing
Product description	XFRMR LAMINATED 198VA CHAS MOUNT
Datasheets:	1.302AX.pdf 2.302AX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	587 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 587 pcs

Reference Price (In US Dollars)

1 pcs: $53.391

10 pcs: $51.61

25 pcs: $48.051

50 pcs: $44.491

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$53.391

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 302AX

Part Number	302AX	Manufacturer	Hammond Manufacturing
Description	XFRMR LAMINATED 198VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	587 pcs	Data sheet	1.302AX.pdf 2.302AX.pdf
Weight	8.5 lbs (3.9kg)	Voltage - Secondary (Full Load)	600V, 6.3V, 5V, 2.5V, 2.5V
Voltage - Primary	100V, 110V, 120V, 200V, 220V, 240V	Voltage - Isolation	2000Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	95.25mm L x 101.60mm W	Series	300
Secondary Winding(s)	Five	Primary Winding(s)	Dual, Multiple Taps
Power - Max	198 VA	Other Names	302AX-ND HM5073
Mounting Type	Chassis Mount	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	115.82mm
Current - Output (Max)	230mA, 6A, 3A, 2.5A, 2.5A	Center Tap	Yes
