Hammond Manufacturing

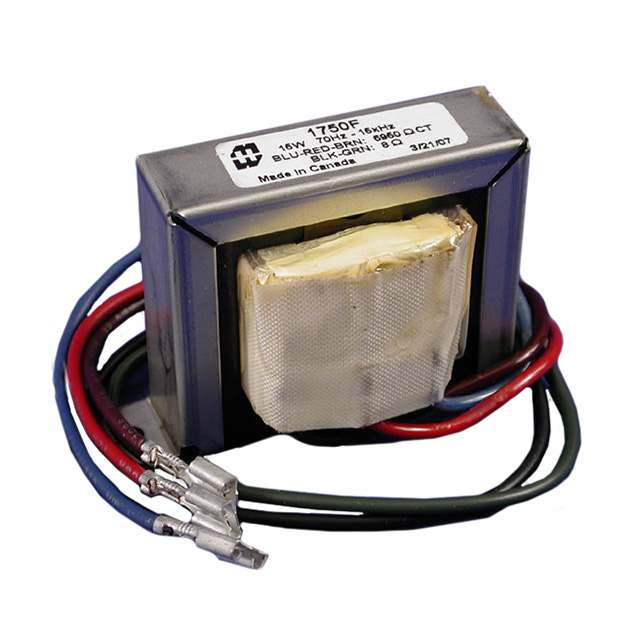

| Part Number | 1750F | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER TUBE GUITAR AMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2539 pcs | Data sheet | 1.1750F.pdf2.1750F.pdf3.1750F.pdf |
| Weight | 0.625 lb (283.5g) | Voltage - Isolation | - |
| Turns Ratio - Primary:Secondary | 29.19:1 | Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Termination Style | Wire Leads | Size / Dimension | 3.250" L x 1.687" W (82.55mm x 42.85mm) |
| Series | 1750 | Return Loss | - |
| Power Level | 15W | Packaging | Bulk |
| Other Names | 1750FHM 1750FHM-ND HM4560 |
Operating Temperature | - |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Impedance - Secondary (Ohms) | 8 |
| Impedance - Primary (Ohms) | 6.95kCT | Height - Seated (Max) | 2.058" (52.27mm) |
| Frequency Response | ±1dB | Frequency Range | 70Hz ~ 15kHz |
| DC Resistance (DCR) - Secondary | 409 mOhm | DC Resistance (DCR) - Primary | 97.36 Ohm, 194.7 Ohm |
| Approvals | - |
