1630SEA

Hammond Manufacturing

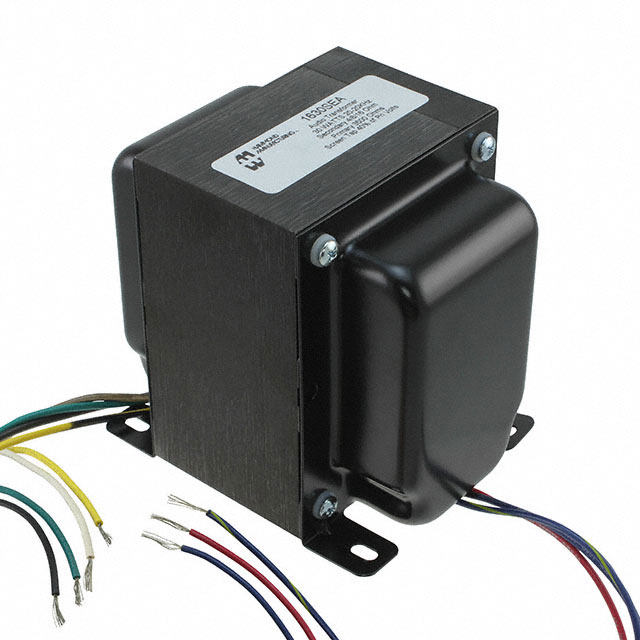

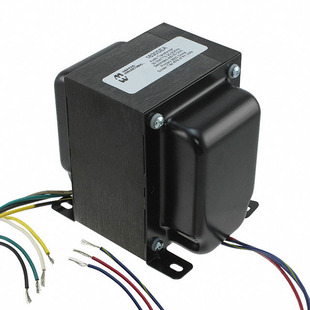

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1630SEA
Manufacturer/Brand:	Hammond Manufacturing
Product description	AUDIOPHILE TUBE OUTPUT TRANSFRMR
Datasheets:	1.1630SEA.pdf 2.1630SEA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	646 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 646 pcs

Reference Price (In US Dollars)

1 pcs: $53.684

10 pcs: $49.849

25 pcs: $47.932

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$53.684

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1630SEA

Part Number	1630SEA	Manufacturer	Hammond Manufacturing
Description	AUDIOPHILE TUBE OUTPUT TRANSFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	646 pcs	Data sheet	1.1630SEA.pdf 2.1630SEA.pdf
Weight	11 lbs (5kg)	Voltage - Isolation	2828VDC @ 1 Second
Turns Ratio - Primary:Secondary	-	Transformer Type	Single Ended Audiophile, Ultra-Linear - Tube Output
Termination Style	Wire Leads	Size / Dimension	4.980" L x 3.750" W (126.49mm x 95.25mm)
Series	1600	Return Loss	-
Power Level	30W	Packaging	Bulk
Other Names	1630SEA-ND HM1558	Operating Temperature	-
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	±1dB	Impedance - Secondary (Ohms)	4, 8, 16
Impedance - Primary (Ohms)	3.5k	Height - Seated (Max)	4.650" (118.11mm)
Frequency Response	±1dB	Frequency Range	20Hz ~ 20kHz
DC Resistance (DCR) - Secondary	634 mOhm	DC Resistance (DCR) - Primary	110.1 Ohm
Approvals	-
