160D56

Hammond Manufacturing

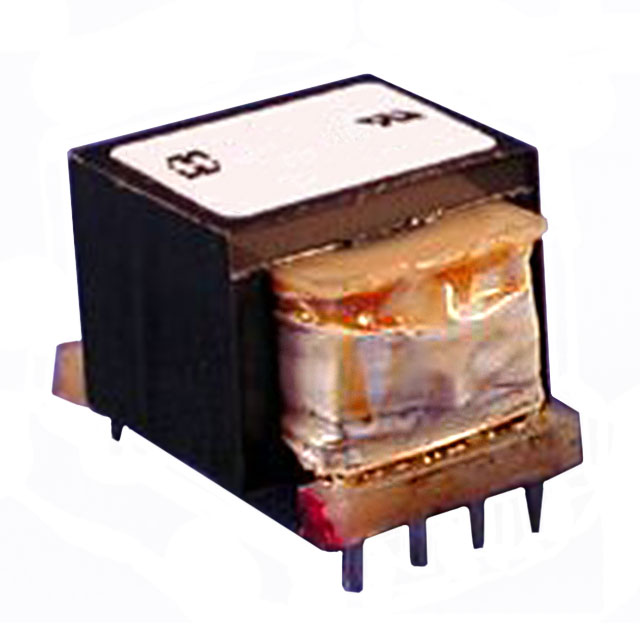

Image may be representation. See specifications for product details.

Product Overview

Part Number:	160D56
Manufacturer/Brand:	Hammond Manufacturing
Product description	XFRMR LAMINATED 1VA THRU HOLE
Datasheets:	160D56.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8673 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8673 pcs

Reference Price (In US Dollars)

1 pcs: $3.685

10 pcs: $2.822

25 pcs: $2.391

50 pcs: $2.352

100 pcs: $2.234

250 pcs: $2.211

500 pcs: $2.179

1000 pcs: $2.156

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.685

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 160D56

Part Number	160D56	Manufacturer	Hammond Manufacturing
Description	XFRMR LAMINATED 1VA THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8673 pcs	Data sheet	160D56.pdf
Weight	0.13 lb (58.97g)	Voltage - Secondary (Full Load)	Parallel 28V, Series 56V
Voltage - Primary	115V, 230V	Voltage - Isolation	2000Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	25.40mm L x 35.05mm W	Series	160
Secondary Winding(s)	Single, Multiple Taps	Primary Winding(s)	Dual
Power - Max	1 VA	Other Names	160D56-ND HM4125
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	21.08mm
Current - Output (Max)	Parallel 30mA, Series 15mA	Center Tap	No
