125GSE

Hammond Manufacturing

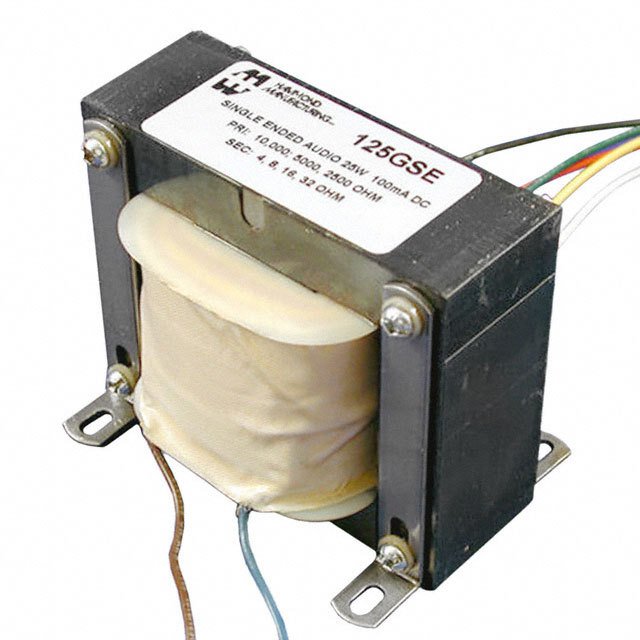

Image may be representation. See specifications for product details.

Product Overview

Part Number:	125GSE
Manufacturer/Brand:	Hammond Manufacturing
Product description	TRANSFORMER 25W 100HZ-15KHZ
Datasheets:	1.125GSE.pdf 2.125GSE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	888 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 888 pcs

Reference Price (In US Dollars)

1 pcs: $37.182

5 pcs: $34.704

10 pcs: $34.084

25 pcs: $33.464

50 pcs: $32.968

100 pcs: $32.225

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$37.182

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 125GSE

Part Number	125GSE	Manufacturer	Hammond Manufacturing
Description	TRANSFORMER 25W 100HZ-15KHZ	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	888 pcs	Data sheet	1.125GSE.pdf 2.125GSE.pdf
Weight	6 lbs (2.7kg)	Voltage - Isolation	2000V @ 1 Second
Turns Ratio - Primary:Secondary	-	Transformer Type	General Purpose
Termination Style	Solder Lug	Size / Dimension	4.150" L x 2.880" W (105.41mm x 73.15mm)
Series	125SE	Return Loss	-
Power Level	25W	Packaging	Bulk
Other Names	125GSE-ND HM2523	Operating Temperature	-
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Impedance - Secondary (Ohms)	4 ~ 32
Impedance - Primary (Ohms)	2.5k ~ 10k	Height - Seated (Max)	3.460" (87.88mm)
Frequency Response	±1dB	Frequency Range	100Hz ~ 15kHz
DC Resistance (DCR) - Secondary	250 mOhm	DC Resistance (DCR) - Primary	50 Ohm
Approvals	-
