Hammond Manufacturing

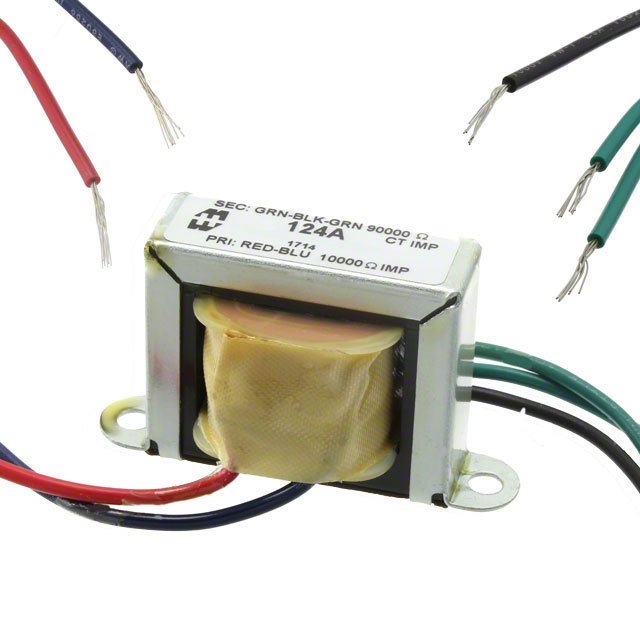

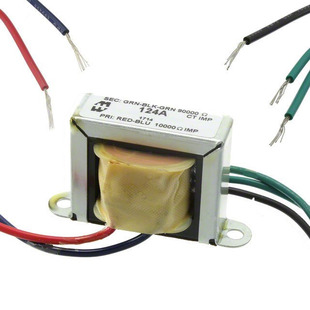

| Part Number | 124A | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER TUBE DRIVER CLASSIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2966 pcs | Data sheet | 1.124A.pdf2.124A.pdf |
| Weight | - | Voltage - Isolation | 500Vrms |
| Turns Ratio - Primary:Secondary | 1:3 | Transformer Type | Tube Driver and Speaker Matching |
| Termination Style | Wire Leads | Size / Dimension | 2.380" L x 1.350" W (60.45mm x 34.29mm) |
| Series | 124 | Return Loss | - |
| Power Level | 5W | Packaging | Bulk |
| Other Names | 124A-ND HM2508 Q1150911 |
Operating Temperature | - |
| Mounting Type | Chassis Mount | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Impedance - Secondary (Ohms) | 90kCT | Impedance - Primary (Ohms) | 10k |
| Height - Seated (Max) | 1.430" (36.32mm) | Frequency Response | ±1dB |
| Frequency Range | 150Hz ~ 15kHz | DC Resistance (DCR) - Secondary | 1.525 kOhm |
| DC Resistance (DCR) - Primary | 405 Ohm | Approvals | - |
