101P

Hammond Manufacturing

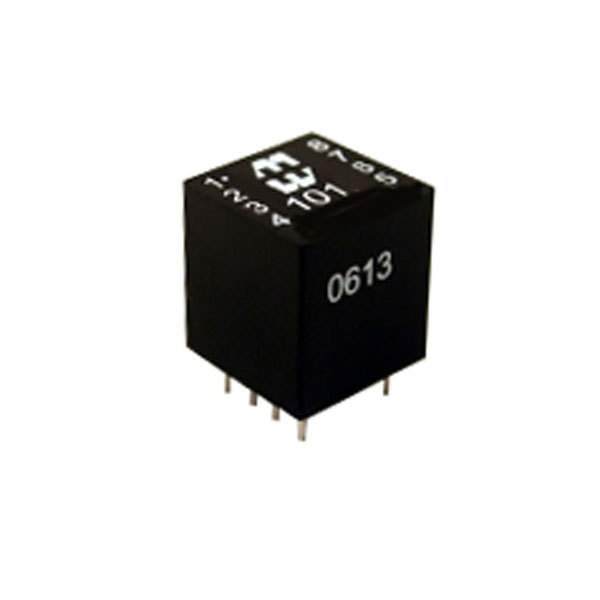

Image may be representation. See specifications for product details.

Product Overview

Part Number:	101P
Manufacturer/Brand:	Hammond Manufacturing
Product description	TRANSFORMER AUDIO 300CT/50CT
Datasheets:	101P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5342 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5342 pcs

Reference Price (In US Dollars)

1 pcs: $6.376

10 pcs: $5.625

25 pcs: $5.437

50 pcs: $4.875

100 pcs: $4.687

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$6.376

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 101P

Part Number	101P	Manufacturer	Hammond Manufacturing
Description	TRANSFORMER AUDIO 300CT/50CT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5342 pcs	Data sheet	101P.pdf
Weight	0.01 lb (4.54g)	Voltage - Isolation	-
Turns Ratio - Primary:Secondary	-	Transformer Type	Miniature Epoxy Potted
Termination Style	PC Pin	Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Series	101	Return Loss	-
Power Level	100mW	Packaging	Bulk
Other Names	101P-ND HM2346	Operating Temperature	-
Mounting Type	Through Hole	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Impedance - Secondary (Ohms)	50CT	Impedance - Primary (Ohms)	300CT
Height - Seated (Max)	0.480" (12.19mm)	Frequency Response	±0.5dB
Frequency Range	200Hz ~ 100kHz	DC Resistance (DCR) - Secondary	4.8 Ohm
DC Resistance (DCR) - Primary	20.4 Ohm	Approvals	-
