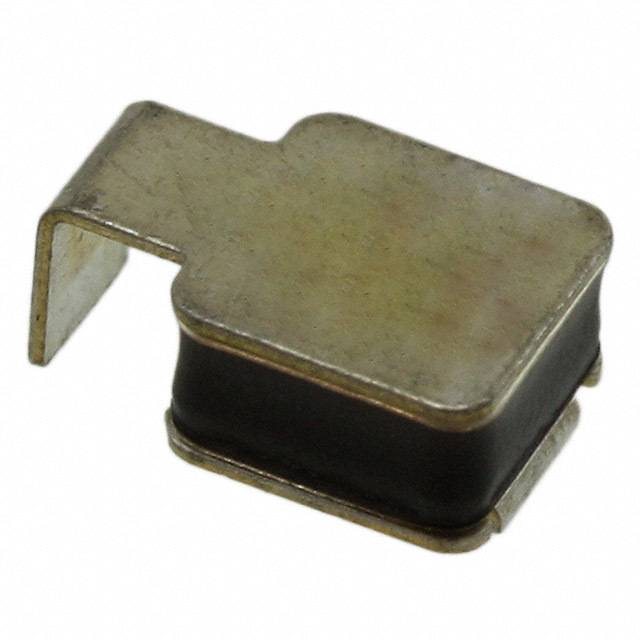

Hamlin / Littelfuse
| Part Number | TSL250-080F-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 80V 80MA 2SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95411 pcs | Data sheet | 1.TSL250-080F-2.pdf2.TSL250-080F-2.pdf |
| Voltage - Max | 80V (250V Int) | Type | Polymeric |
| Time to Trip | 800ms | Thickness (Max) | 0.146" (3.70mm) |
| Size / Dimension | 0.287" L x 0.199" W (7.30mm x 5.05mm) | Series | PolySwitch®, TS250 |
| Resistance - Post Trip (R1) (Max) | 20 Ohms | Resistance - Initial (Ri) (Min) | 5 Ohms |
| Ratings | - | Packaging | Original-Reel® |
| Package / Case | 2-SMD | Other Names | TSL250-080F-2DKR TSL250-080FDKR TSL250-080FDKR-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | - | Detailed Description | Polymeric PTC Resettable Fuse 80V (250V Int) 80mA Ih Surface Mount 2-SMD |
| Current - Trip (It) | 240mA | Current - Max | 3A |
| Current - Hold (Ih) (Max) | 80mA | Approvals | CSA, TUV, UL |
