S8055R

Hamlin / Littelfuse

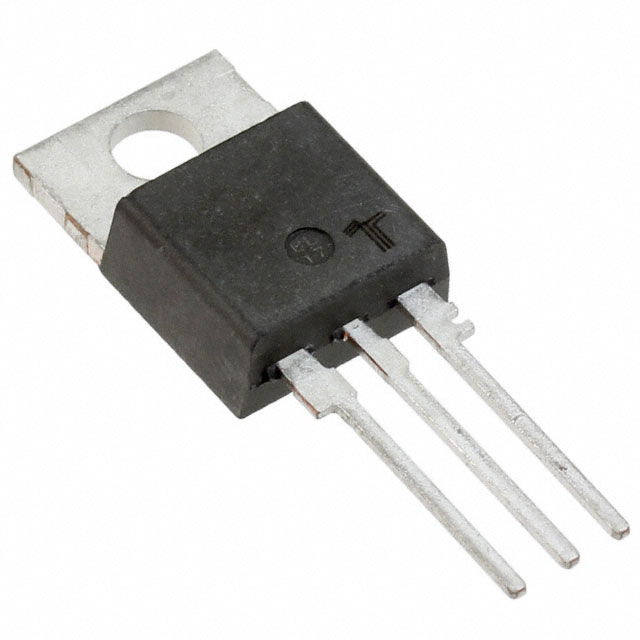

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S8055R
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	SCR NON-ISOLATE 800V 55A TO220AB
Datasheets:	1.S8055R.pdf 2.S8055R.pdf 3.S8055R.pdf 4.S8055R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48408 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 48408 pcs

Reference Price (In US Dollars)

500 pcs: $0.672

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.672

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S8055R

Part Number	S8055R	Manufacturer	Hamlin / Littelfuse
Description	SCR NON-ISOLATE 800V 55A TO220AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48408 pcs	Data sheet	1.S8055R.pdf 2.S8055R.pdf 3.S8055R.pdf 4.S8055R.pdf
Voltage - On State (Vtm) (Max)	1.8V	Voltage - Off State	800V
Voltage - Gate Trigger (Vgt) (Max)	1.5V	Supplier Device Package	TO-220 Non-Isolated Tab
Series	-	SCR Type	Standard Recovery
Packaging	Bulk	Package / Case	TO-220-3
Operating Temperature	-40°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	SCR 800V 55A Standard Recovery Through Hole TO-220 Non-Isolated Tab	Current - On State (It (RMS)) (Max)	55A
Current - On State (It (AV)) (Max)	35A	Current - Off State (Max)	20µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A	Current - Hold (Ih) (Max)	60mA
Current - Gate Trigger (Igt) (Max)	40mA
