RXEF135-AP

Hamlin / Littelfuse

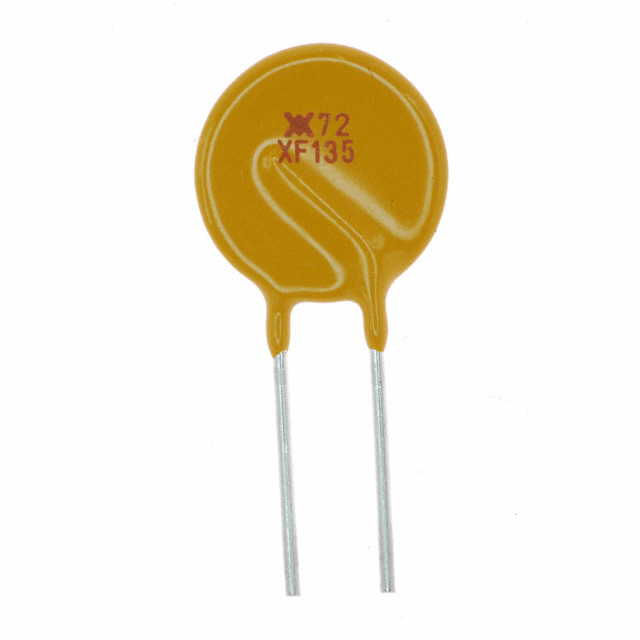

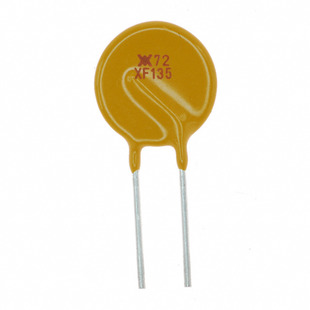

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RXEF135-AP
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	PTC RESET FUSE 72V 1.35A RADIAL
Datasheets:	1.RXEF135-AP.pdf 2.RXEF135-AP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	368601 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 368601 pcs

Reference Price (In US Dollars)

1000 pcs: $0.082

2000 pcs: $0.077

3000 pcs: $0.075

5000 pcs: $0.074

10000 pcs: $0.071

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.082

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RXEF135-AP

Part Number	RXEF135-AP	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 72V 1.35A RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	368601 pcs	Data sheet	1.RXEF135-AP.pdf 2.RXEF135-AP.pdf
Voltage - Max	72V	Type	Polymeric
Time to Trip	9.6s	Thickness (Max)	-
Size / Dimension	0.571" Dia x 0.118" T (14.50mm x 3.00mm)	Series	PolySwitch®, RXEF
Resistance - Post Trip (R1) (Max)	300 mOhms	Resistance - Initial (Ri) (Min)	120 mOhms
Ratings	-	Packaging	Tape & Box (TB)
Package / Case	Radial, Disc	Other Names	F40009-000 F40009-000-ND RF2699-000 RXEF135-AP-ND RXEF135-APTB
Operating Temperature	-40°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	10 Weeks
Lead Spacing	0.200" (5.08mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.752" (19.10mm)	Detailed Description	Polymeric PTC Resettable Fuse 72V 1.35A Ih Through Hole Radial, Disc
Current - Trip (It)	2.7A	Current - Max	40A
Current - Hold (Ih) (Max)	1.35A	Approvals	CQC, CSA, TUV, UL
