Hamlin / Littelfuse
| Part Number | RXEF075S | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|

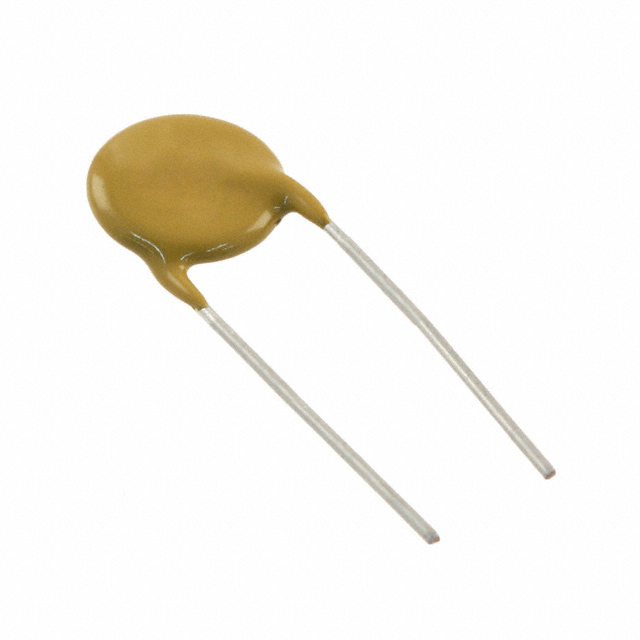

| Description | PTC RESET FUSE 72V 750MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 192384 pcs | Data sheet | 1.RXEF075S.pdf2.RXEF075S.pdf |
| Voltage - Max | 72V | Type | Polymeric |
| Time to Trip | 6.3s | Thickness (Max) | - |
| Size / Dimension | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | Series | PolySwitch®, RXEF |
| Resistance - Post Trip (R1) (Max) | 600 mOhms | Resistance - Initial (Ri) (Min) | 250 mOhms |
| Ratings | - | Packaging | Bulk |
| Package / Case | Radial, Disc | Other Names | RF0418-000 RF0418-000-ND RF2672-000 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Spacing | 0.200" (5.08mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.598" (15.20mm) | Detailed Description | Polymeric PTC Resettable Fuse 72V 750mA Ih Through Hole Radial, Disc |
| Current - Trip (It) | 1.5A | Current - Max | 40A |
| Current - Hold (Ih) (Max) | 750mA | Approvals | CQC, CSA, TUV, UL |
