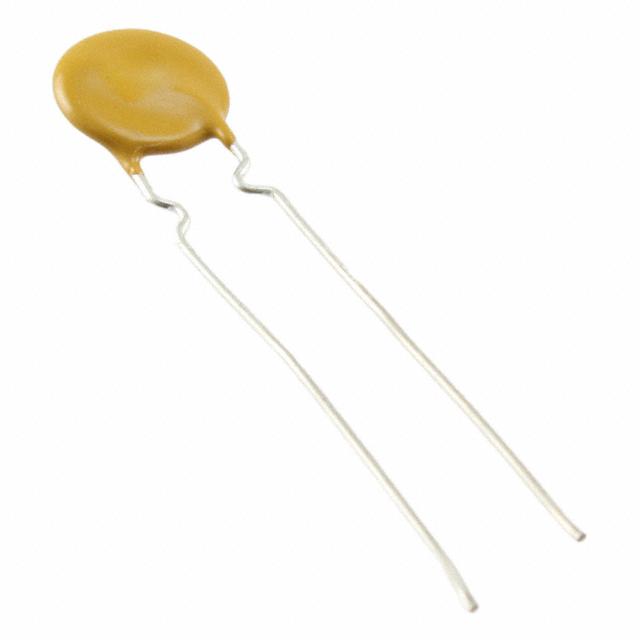

Hamlin / Littelfuse
| Part Number | RXEF065-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 72V 650MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 405667 pcs | Data sheet | 1.RXEF065-2.pdf2.RXEF065-2.pdf |
| Voltage - Max | 72V | Type | Polymeric |
| Time to Trip | 5.3s | Thickness (Max) | - |
| Size / Dimension | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | Series | PolySwitch® |
| Resistance - Post Trip (R1) (Max) | 720 mOhms | Resistance - Initial (Ri) (Min) | 310 mOhms |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Disc | Other Names | C34216-000 C34216-000TR-ND RXEF065-2-ND RXEF065-2TR RXEF0652 RXEF065TR RXEF065TR-ND |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Lead Spacing | 0.200" (5.08mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.571" (14.50mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 72V 650mA Ih Through Hole Radial, Disc | Current - Trip (It) | 1.3A |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 650mA |
| Approvals | CQC, CSA, TUV, UL |
