Hamlin / Littelfuse
| Part Number | RGEF300-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|

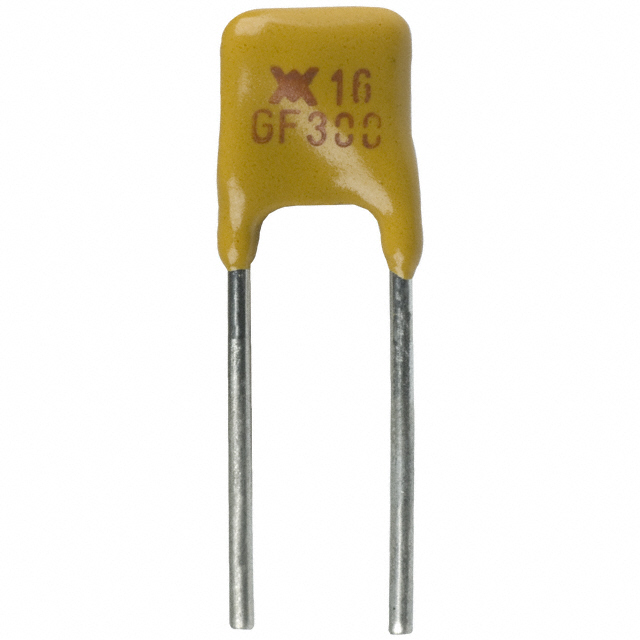

| Description | PTC RESET FUSE 16V 3A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 175692 pcs | Data sheet | 1.RGEF300-2.pdf2.RGEF300-2.pdf |
| Voltage - Max | 16V | Type | Polymeric |
| Time to Trip | 1s | Thickness (Max) | - |
| Size / Dimension | 0.260" L x 0.098" W (6.60mm x 2.50mm) | Series | PolySwitch®, RGEF |
| Resistance - Post Trip (R1) (Max) | 97.5 mOhms | Resistance - Initial (Ri) (Min) | 38 mOhms |
| Ratings | - | Packaging | Cut Tape (CT) |
| Package / Case | Radial, Disc | Other Names | RGEF300-2CT RGEF300CT RGEF300CT-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.433" (11.00mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 3A Ih Through Hole Radial, Disc | Current - Trip (It) | 5.1A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 3A |
| Approvals | CSA, TUV, UL |
