Hamlin / Littelfuse

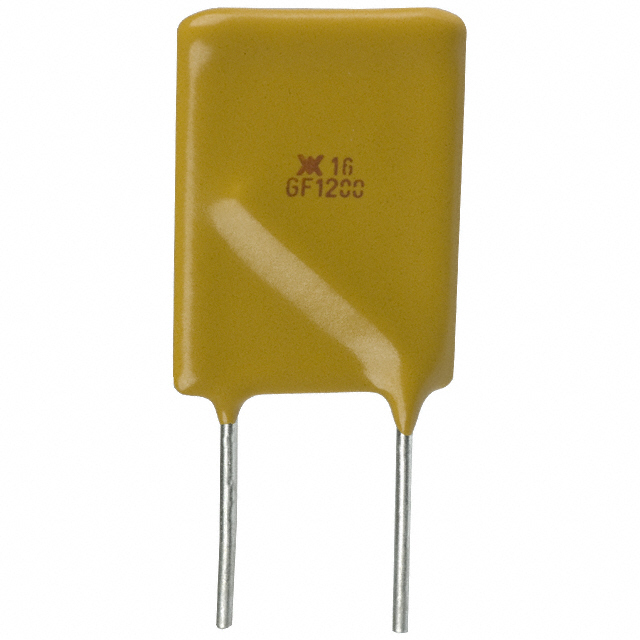

| Part Number | RGEF1200-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 12A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 177599 pcs | Data sheet | 1.RGEF1200-2.pdf2.RGEF1200-2.pdf |
| Voltage - Max | 16V | Type | Polymeric |
| Time to Trip | 7.5s | Thickness (Max) | - |
| Size / Dimension | 0.670" L x 0.520" W (16.95mm x 2.90mm) | Series | PolySwitch®, RGEF |
| Resistance - Post Trip (R1) (Max) | 8.6 mOhms | Resistance - Initial (Ri) (Min) | 3.3 mOhms |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Disc | Other Names | D11568-000 RGEF1200-2-ND RGEF1200-2TR RGEF12002 RGEF1200TR RGEF1200TR-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Lead Spacing | 0.400" (10.15mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 1.102" (28.00mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 12A Ih Through Hole Radial, Disc | Current - Trip (It) | 20.4A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 12A |
| Approvals | CSA, TUV, UL |
