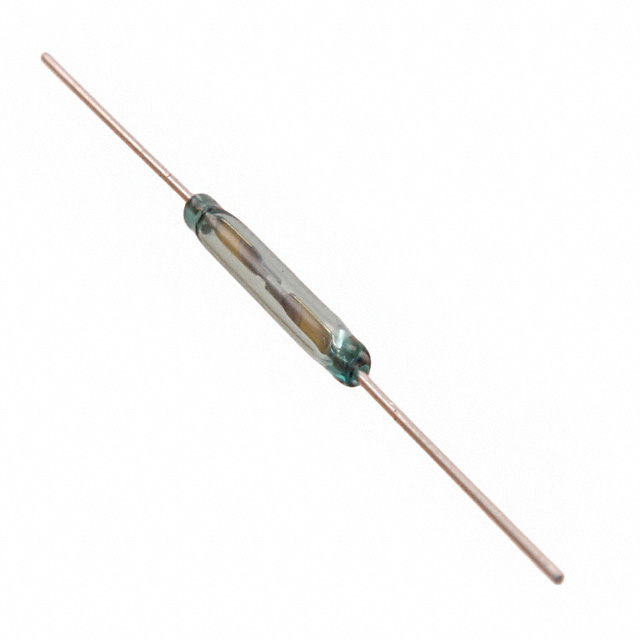

Hamlin / Littelfuse
| Part Number | MRPR-3-22-28 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | SWITCH REED SPST-NO 1.1A 140V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7069 pcs | Data sheet | 1.MRPR-3-22-28.pdf2.MRPR-3-22-28.pdf |
| Voltage - Switching DC | 200V | Voltage - Switching AC | 140V |
| Type | Glass Body | Termination Style | Axial |
| Size - Body | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | Series | MRPR-3 |
| Release Time | 0.3ms | Release Range | - |
| Power - Rated | 50W | Packaging | Bulk |
| Other Names | MRPR-3 22-28 MRPR-3 22-28-ND MRPR-3 5273 22-28 MRPR3 2228 |
Operating Temperature | -40°C ~ 125°C |
| Operate Time | 0.75ms | Operate Range | 22 ~ 28AT |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Overall | 2.230" (56.64mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | - | Detailed Description | Glass Body Reed Switch SPST-NO 22 ~ 28AT Operate Range 50W 1.1A (AC), 1.5A (DC) 140V Through Hole |
| Current - Switching | 1.1A (AC), 1.5A (DC) | Current - Carry | 3A (DC) |
| Circuit | SPST-NO | Capacitance | 0.2pF |
