Hamlin / Littelfuse
| Part Number | LVRL200 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|

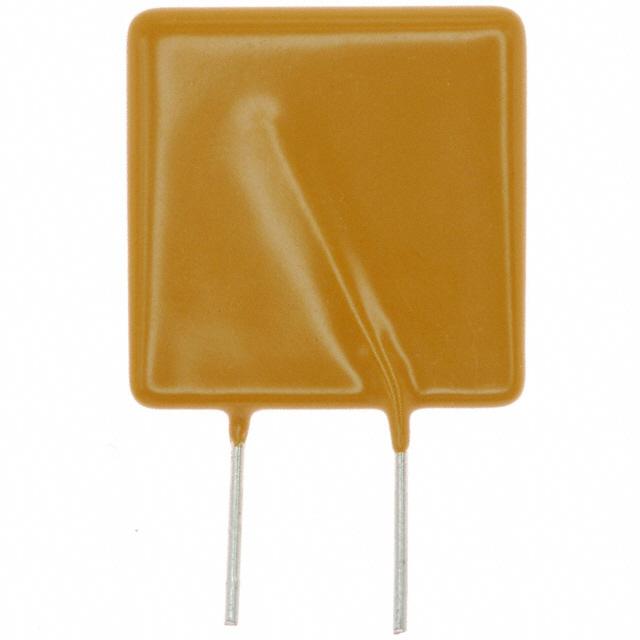

| Description | PTC RESET FUSE 120V 2A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5479 pcs | Data sheet | LVRL200.pdf |
| Voltage - Max | 120V (135V Int) | Type | Polymeric |
| Time to Trip | 36s | Thickness (Max) | - |
| Size / Dimension | 0.925" L x 0.161" W (23.50mm x 4.10mm) | Series | PolySwitch®, LVRL |
| Resistance - Post Trip (R1) (Max) | 210 mOhms | Resistance - Initial (Ri) (Min) | 80 mOhms |
| Ratings | - | Packaging | Bulk |
| Package / Case | Radial, Disc | Other Names | A38772-000 LVRL200S LVRL200S-ND |
| Operating Temperature | -20°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Lead Spacing | 0.400" (10.15mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 1.252" (31.80mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 120V (135V Int) 2A Ih Through Hole Radial, Disc | Current - Trip (It) | 4.2A |
| Current - Max | 20A | Current - Hold (Ih) (Max) | 2A |
| Approvals | CSA, TUV, UL |
