Hamlin / Littelfuse
| Part Number | LVR025K-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|

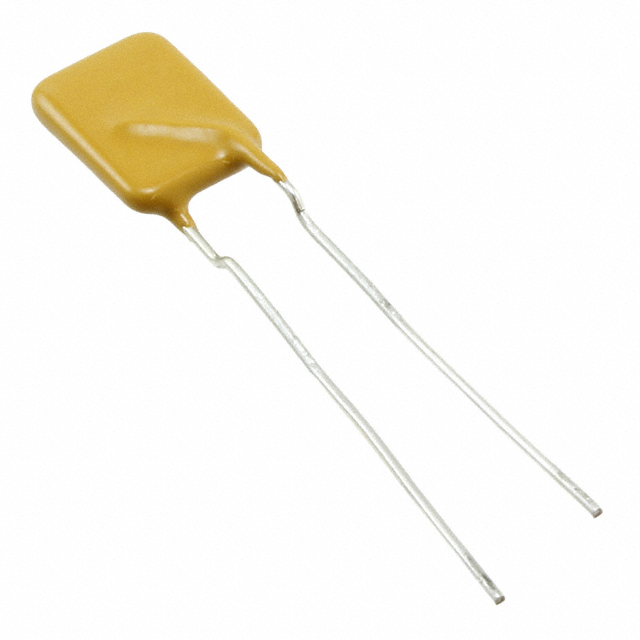

| Description | PTC RESET FUSE 240V 250MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 353750 pcs | Data sheet | 1.LVR025K-2.pdf2.LVR025K-2.pdf |
| Voltage - Max | 240V (265V Int) | Type | Polymeric |
| Time to Trip | 18.5s | Thickness (Max) | - |
| Size / Dimension | 0.378" L x 0.150" W (9.60mm x 3.80mm) | Series | PolySwitch®, LVR |
| Resistance - Post Trip (R1) (Max) | 3.8 Ohms | Resistance - Initial (Ri) (Min) | 1.3 Ohms |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Disc | Other Names | F27075-000 LVR025K-2-ND LVR025K-2TR LVR025K2 LVR025KTR LVR025KTR-ND |
| Operating Temperature | -20°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Spacing | 0.200" (5.08mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.740" (18.80mm) | Detailed Description | Polymeric PTC Resettable Fuse 240V (265V Int) 250mA Ih Through Hole Radial, Disc |
| Current - Trip (It) | 560mA | Current - Max | 3.5A |
| Current - Hold (Ih) (Max) | 250mA | Approvals | CQC, CSA, TUV, UL |
