Hamlin / Littelfuse

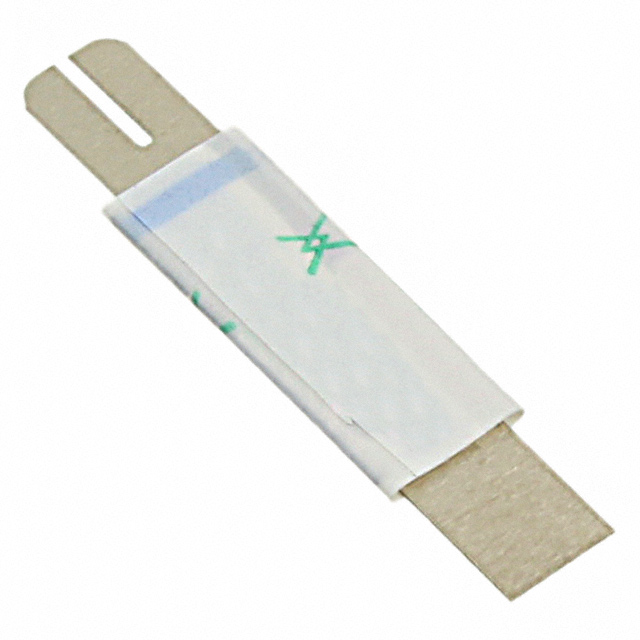

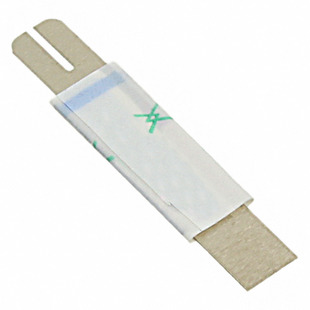

| Part Number | LR4-260SF | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 15V 2.6A STRAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109402 pcs | Data sheet | 1.LR4-260SF.pdf2.LR4-260SF.pdf3.LR4-260SF.pdf |
| Voltage - Max | 15V | Type | Polymeric |
| Time to Trip | 5s | Size / Dimension | 0.866" L x 0.205" W (22.00mm x 5.20mm) |
| Series | PolySwitch®, LR4 | Resistance - Post Trip (R1) (Max) | 63 mOhms |
| Resistance - Initial (Ri) (Min) | 20 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Strap |
| Other Names | D90027-000 RF1539-000 RF1539-000-ND RF1539000 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | User Defined | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Polymeric PTC Resettable Fuse 15V 2.6A Ih User Defined Strap |
| Current - Trip (It) | 5.8A | Current - Max | 100A |
| Current - Hold (Ih) (Max) | 2.6A | Approvals | CSA, TUV, UL |
