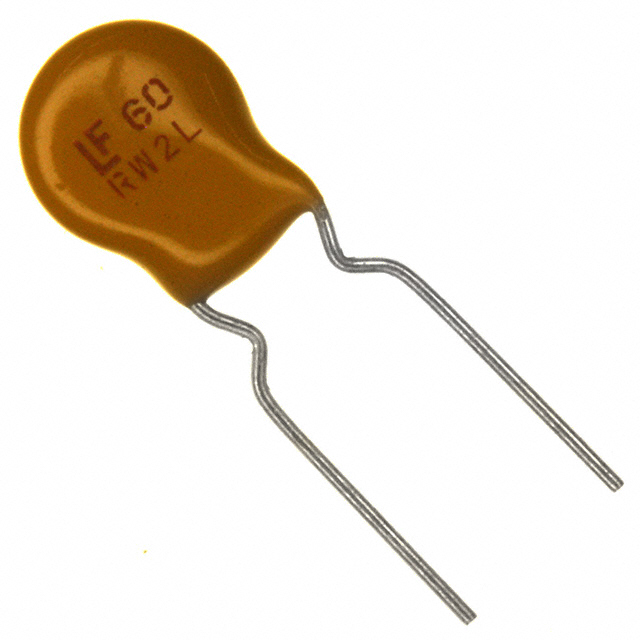

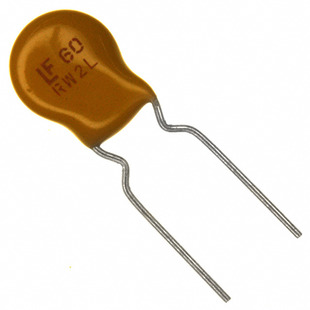

Hamlin / Littelfuse
| Part Number | 60R040XPR | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 60V 400MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 444801 pcs | Data sheet | 60R040XPR.pdf |
| Voltage - Max | 60V | Type | Polymeric |
| Time to Trip | 3.8s | Thickness (Max) | - |
| Size / Dimension | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | Series | POLY-FUSE®, 60R |
| Resistance - Post Trip (R1) (Max) | 1.29 Ohms | Resistance - Initial (Ri) (Min) | 550 mOhms |
| Ratings | - | Packaging | Tape & Box (TB) |
| Package / Case | Radial, Disc | Other Names | 060R0040WR 060R0040WR-ND 60R040XPR-ND F5560TB R60R040 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Spacing | 0.201" (5.10mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.532" (13.50mm) | Detailed Description | Polymeric PTC Resettable Fuse 60V 400mA Ih Through Hole Radial, Disc |
| Current - Trip (It) | 800mA | Current - Max | 40A |
| Current - Hold (Ih) (Max) | 400mA | Approvals | cURus, TUV |
