Hamlin / Littelfuse
| Part Number | 1206L150PR | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|

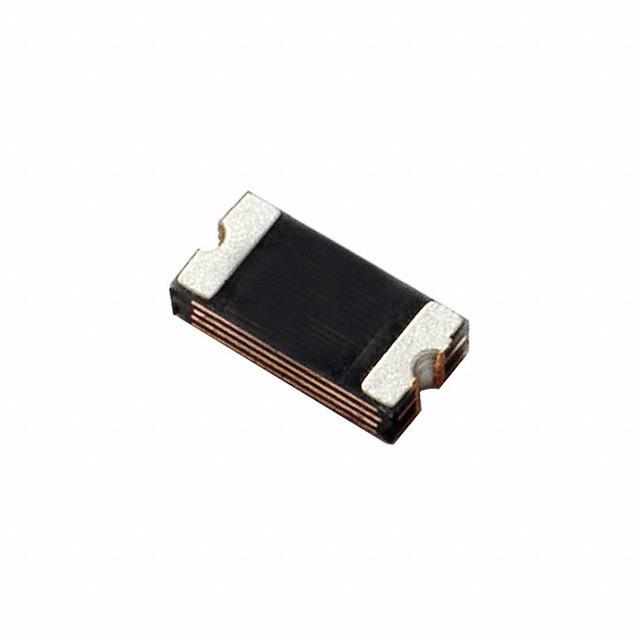

| Description | PTC RESET FUSE 8V 1.5A 1206 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5995 pcs | Data sheet | 1206L150PR.pdf |
| Voltage - Max | 8V | Type | Polymeric |
| Time to Trip | 300ms | Thickness (Max) | 0.055" (1.40mm) |
| Size / Dimension | 0.126" L x 0.065" W (3.20mm x 1.65mm) | Series | POLY-FUSE®, 1206L |
| Resistance - Post Trip (R1) (Max) | 120 mOhms | Resistance - Initial (Ri) (Min) | 40 mOhms |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric), Concave | Other Names | 1206L150-C 1206L150C 1206L150WRT F2115TR |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 8V 1.5A Ih Surface Mount 1206 (3216 Metric), Concave | Current - Trip (It) | 3A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 1.5A |
| Approvals | cURus, TUV |
