HARTING

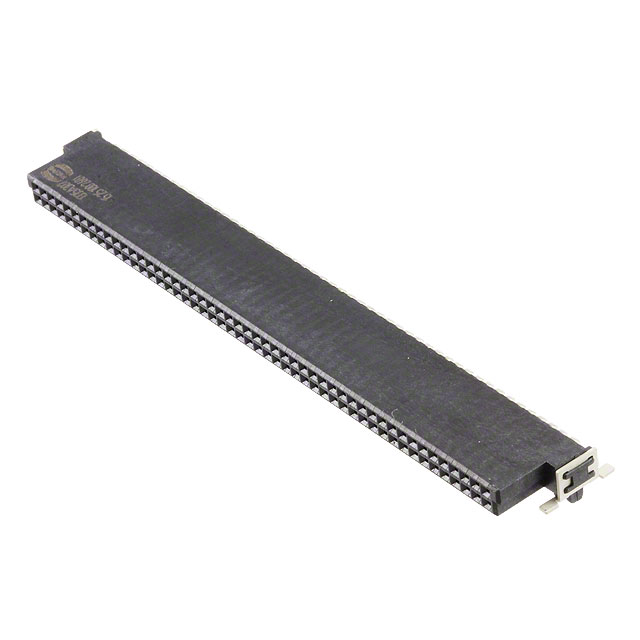

| Part Number | 15251002601000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN RECPT 100POS 1.27MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9550 pcs | Data sheet | 1.15251002601000.pdf2.15251002601000.pdf3.15251002601000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | har-flex® |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Cut Tape (CT) | Other Names | 1195-3423-1 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 100 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.120" (3.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | 100 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | - |
| Connector Type | Receptacle | Applications | General Purpose |
