HARTING
| Part Number | 15220162401000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | HAR-FLEX THR STR FEMALE 9.05MM 1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15983 pcs | Data sheet | 1.15220162401000.pdf2.15220162401000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | har-flex® |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Cut Tape (CT) | Other Names | 1195-5664-1 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Pick and Place, Solder Retention | Fastening Type | Push-Pull |

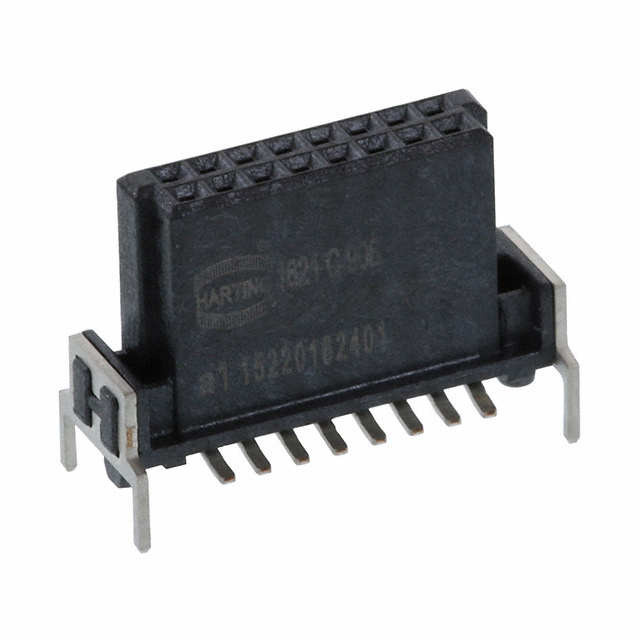

| Detailed Description | 16 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
