HARTING
| Part Number | 15210202401000 | Manufacturer | HARTING |
|---|---|---|---|

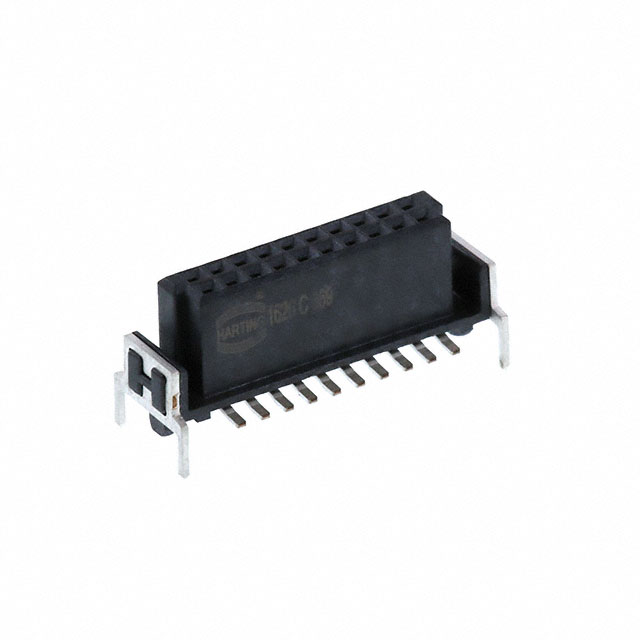

| Description | HAR-FLEX THR STR FEMALE 6.25MM 2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16141 pcs | Data sheet | 1.15210202401000.pdf2.15210202401000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | har-flex® |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Cut Tape (CT) | Other Names | 1195-5660-1 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.246" (6.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
