15150202601000

HARTING

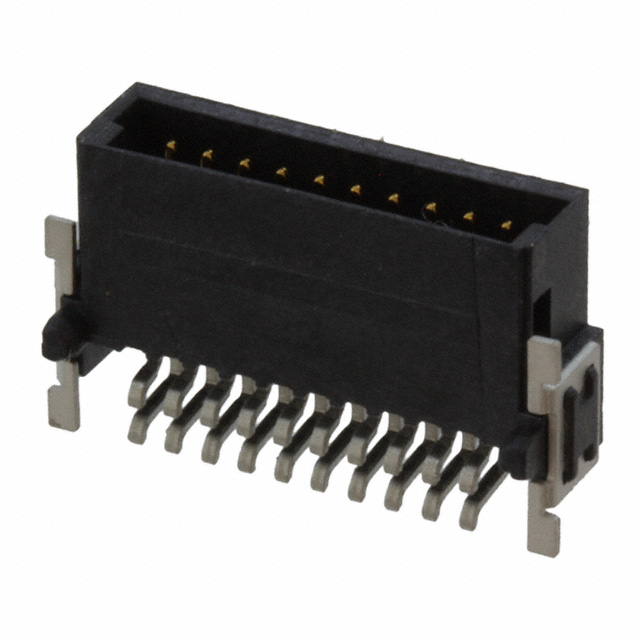

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15150202601000
Manufacturer/Brand:	HARTING
Product description	CONN HEADER 20POS SMT R/A GOLD
Datasheets:	1.15150202601000.pdf 2.15150202601000.pdf 3.15150202601000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47371 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 47371 pcs

Reference Price (In US Dollars)

560 pcs: $0.812

1120 pcs: $0.693

1680 pcs: $0.669

2800 pcs: $0.645

5600 pcs: $0.621

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.812

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15150202601000

Part Number	15150202601000	Manufacturer	HARTING
Description	CONN HEADER 20POS SMT R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47371 pcs	Data sheet	1.15150202601000.pdf 2.15150202601000.pdf 3.15150202601000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	har-flex®	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	1195-3383-2
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.167" (4.25mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Solder Retention	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount, Right Angle 20 position 0.050" (1.27mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
